Pixhawk 2.4.8 PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone High Quality

Characteristics:

Compatible with Alexmos2.2 or firmware below, compatible with the newest firmware BruGi_050 German, standard Russian2.2 firmwareTips

A new generation of strong input control 32-bit processor, a circuit board with PX4FMU + PX4IO

(Download Mission Planner HERE)

Specifications:

32-bit Pixhawk PX4 Autopilot Open Code Flight Controller V2.4.8

2 bit 1.32 STM32F427 flash Cortex M4, with the floating-point hardware processing unit

2 main frequency: 256 K, RAM 168 MHZ

32-bit processor STM32F103 backup co

Sensors:

L3GD20 3-axis 16-bit digital gyroscope

 LSM303D 14/3 Axis Accelerometer Magnetometer

MPU6000 6-axis accelerometer / magnetometer

 MS5611 high precision barometer

Interface:

5 UART 1 High Voltage compatible, 2 with hardware flow control

2 CAN

DSM / DSM-X Spektrum compatible satellite receiver input

SBUS input and output compatible

PPM signal input

RSSI (PWM or input voltage)

I2C

SPI

3.3 and 6.6 VADC inputs

external US MICRO

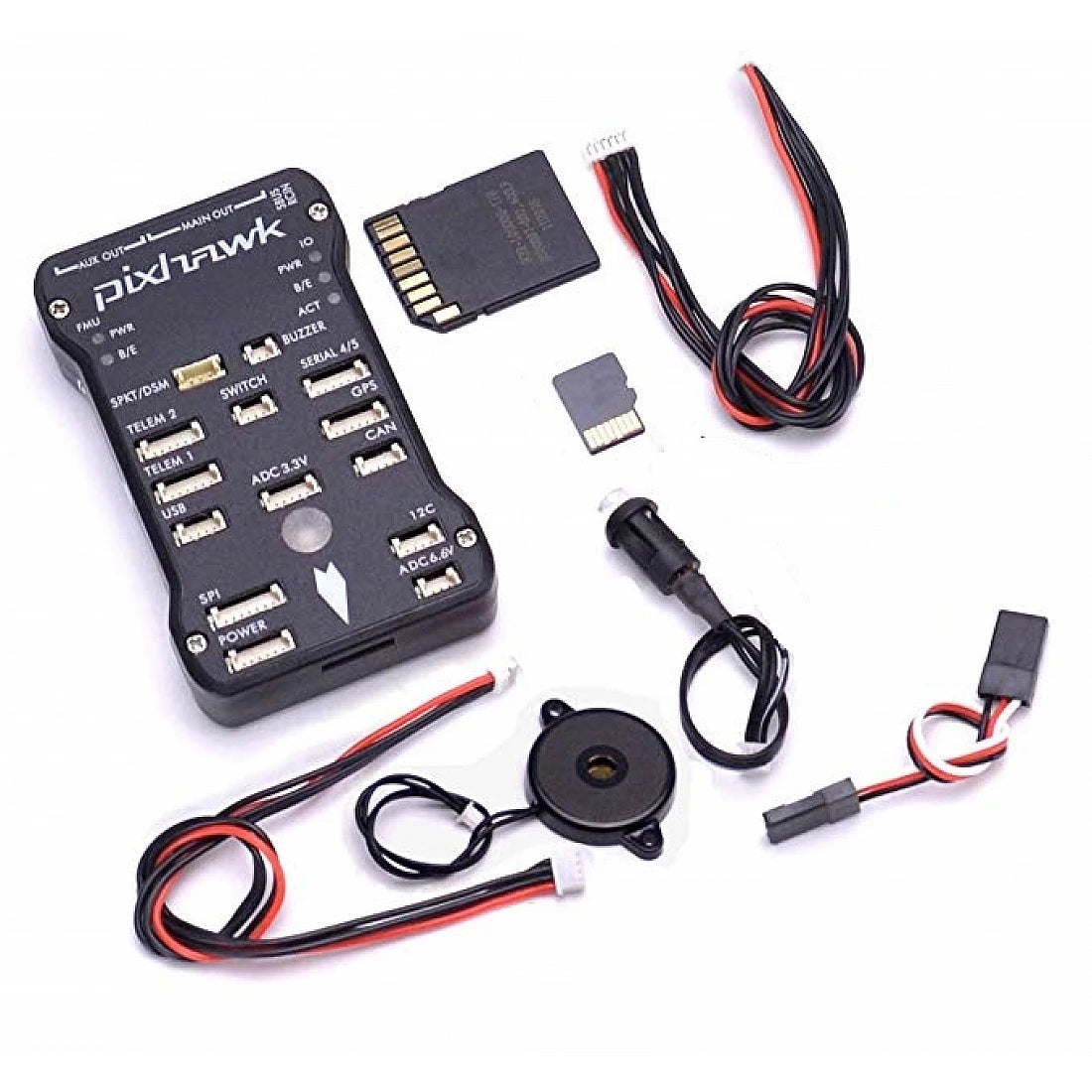

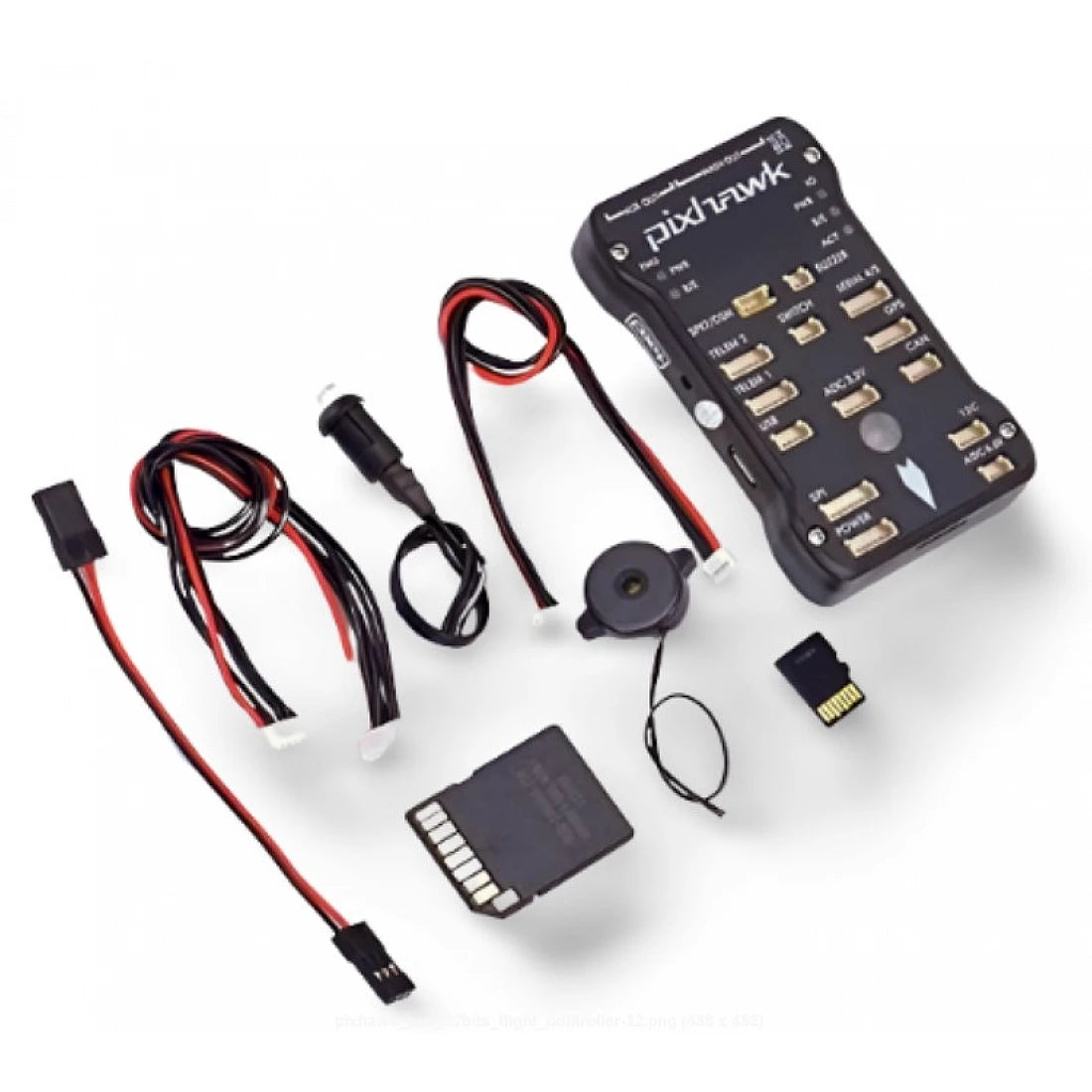

Package includes:

1 X 2.4.8 Pixhawk main control with shell

1 X Safety switch

1 X Buzzer

1 X Memory Card

Connection Wire
